How do I calculate the kW power load I need to declare to the venue?

Add the nameplate wattage of every powered item on the stand — lighting, AV screens, demo machinery, hospitality appliances (coffee machine, fridge, dishwasher), IT, phone chargers — then add a 20-25% safety margin for simultaneous draw. A typical 100 sqm stand with LED lighting, two 75-inch screens, an espresso machine, a fridge, and three laptops needs roughly 8-12 kW; add a 5 kW machine demo and you are at 16-20 kW. Declare in three-phase if the total exceeds 6 kW or if any single device runs three-phase (most industrial demo machinery, larger air conditioning, large coffee bars). Under-declaring trips the breaker mid-show; over-declaring inflates the connection fee but otherwise costs nothing. Always over-declare by one bracket if in doubt.

Why must mains connection always go through the venue's exclusive electrician?

The hall's electrical infrastructure — feeders, distribution boards, breakers, RCDs — is part of the venue building and is certified by the venue's licensed electrical contractor under DIN VDE 0100 and EN 60204 (Germany, most of EU). Connection of a temporary stand circuit to a permanent hall feeder must be performed and signed off by an electrician with the venue's permit, otherwise the venue's whole-building insurance is voided. Messe Frankfurt routes all mains connections through their in-house electrical team; Messe München and Düsseldorf operate similar exclusivities; Fiera Milano and IFEMA also operate venue-electrician monopolies. Inside your own stand you can wire low-voltage distribution with your own crew, but the main feed termination is exclusively theirs.

How much does the electrical connection actually cost?

Connection fees at major German Messen typically sit at EUR 320-480 for a 3 kW single-phase supply, EUR 580-880 for 10 kW three-phase, EUR 1,200-1,800 for 32 kW three-phase, and EUR 2,400-3,800 for 63 kW. These are the connection fees only; consumption is metered separately at EUR 0.42-0.65 per kWh. 24-hour power (continuous supply rather than show-hours-only) attracts a 30-50% premium on the connection fee because the supply remains live during the build, the show, and dismantle. Fiera Milano, IFEMA, and RAI Amsterdam run broadly comparable tariffs. Late applications — those after the manual's deadline date — typically carry a 25% surcharge.

What other utilities can I connect to and when do I need them?

Water and waste connections are commonly available at major German and Italian Messen — needed for coffee bars, hospitality kitchens, demo machinery using cooling water, and any live food service. Typical connection fee is EUR 280-650 plus consumption. Compressed air at 6-10 bar is offered at industrial-focused fairs (Hannover Messe, EMO, Bauma) for live machinery demonstrations; EUR 350-800 per connection plus volumetric charge. IT connections — dedicated Ethernet, fibre, and reserved Wi-Fi bandwidth — run EUR 280 (basic 100 Mbps) to EUR 1,800+ (1 Gbps dedicated symmetrical line). For live demo or live broadcast, always order a dedicated line; relying on shared visitor Wi-Fi for a streamed product launch is a well-documented failure mode.

What happens if I draw more power than I declared?

The venue's distribution board RCD trips and your stand goes dark. In best case the venue electrician arrives within 30-60 minutes, identifies which circuit overdrew, and either resets the breaker (one-time) or upgrades your circuit to the next bracket — billed retroactively at 1.5-2x the standard connection fee as a same-show emergency upgrade, typically EUR 500-1,500 depending on the size change. In worst case, particularly during a high-traffic show hour, the trip cascades through adjacent stands and the venue applies a penalty for caused disruption. The lesson: declare 20-25% above your calculated load, and physically measure draw on the first build-up day with a clamp meter before the show opens to confirm headroom.

Electrical and Utility Connections: Why Power, Water, and Compressed Air All Go Through the Venue's Electrician

Hall mains connection at every major European Messe is a venue monopoly governed by DIN VDE 0100 and the venue's whole-building insurance. Get the kW declaration wrong by one bracket and you either pay EUR 320-3,800 too much in connection fees or trip a breaker mid-show. This section covers load calculation, three-phase versus single-phase decisions, 24-hour supply premiums, water and compressed-air connections, and the IT bandwidth quotes that prevent a streamed product launch failing on shared Wi-Fi.

3 articles

Electrical and Utility Connections

Water, Compressed Air, and Data Connections at European Exhibition Stands: The Utility Side-Bill Most Exhibitors Underestimate

Water, compressed air, and data are the three utilities that show up on the venue invoice after the electrical bill, and they routinely add EUR 1,500-5,000 to a stand budget that wasn't planned for them. A practical guide to ordering water connections, compressed air supply, and stand internet at major European venues, with 2026 EUR tariffs and the operational considerations that determine whether the utilities work.

Oct 28, 2025 10 min read

Electrical and Utility Connections

Electrical, Water, Compressed Air and Data Connections at European Exhibition Stands

Venue utility connections — power, water, compressed air, network data — are the most rule-bound and most under-budgeted services in European exhibition delivery. Published tariffs, certified installer requirements, and the calculation discipline that prevents on-stand outages.

Oct 21, 2025 11 min read

Electrical and Utility Connections

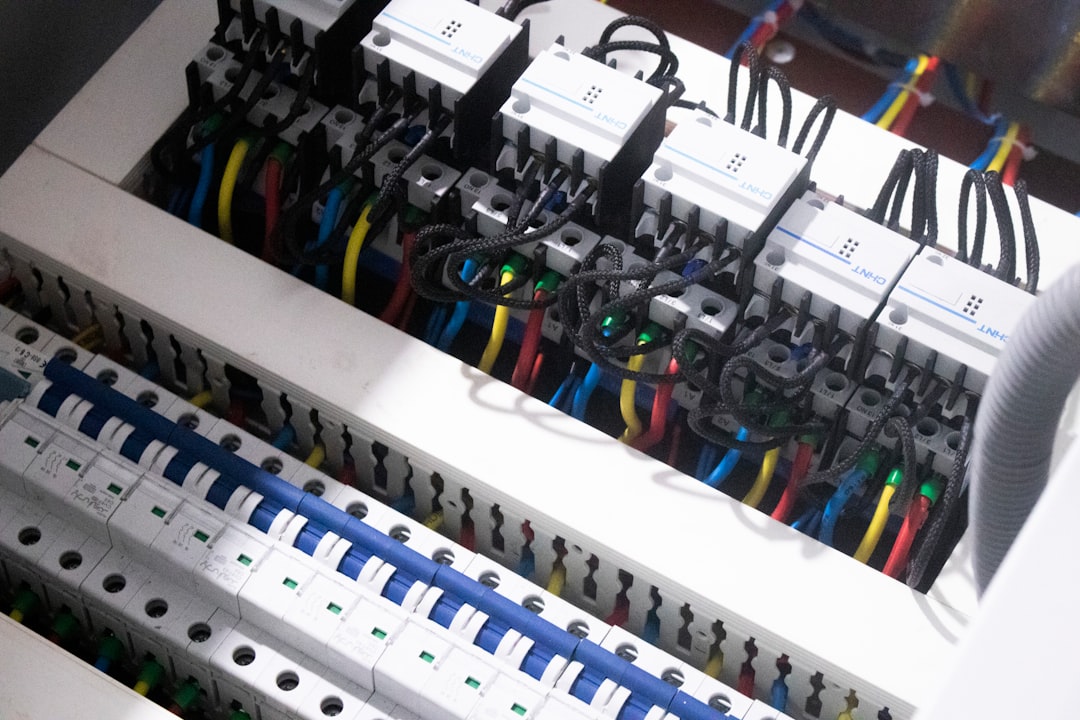

Electrical Power Ordering at European Exhibition Venues: Single-Phase, Three-Phase, and the Specification Pitfalls That Cost Stands Their Opening

Electrical power specification is one of the most error-prone parts of any European stand order. Single-phase versus three-phase, CEE plug standards, the difference between connected load and operational load, the venue-monopoly testing certification - all sit between an exhibitor and a functioning stand. A practical guide to electrical ordering at major European venues with the 2026 EUR tariffs and the specification discipline that prevents opening-day failures.

Oct 15, 2025 11 min read
